In today’s post, I shall be writing a tutorial on how to configure t.link HD decoders. Relevant info required to get you started as a new user on liberty decoder and/or t.link decoder shall be provided here. However, my case study shall be on t.link 300 HD, 600 and t.link 900 HD only)
How to Configure t.link HD decoders: What you must know:
- First and foremost, you must have upgraded your t.link’s firmware to the latest available version.
- Secondly, you must be able to track a satellite dish yourself to learn how to easily do this plus the frequencies to use read my post here.
- Also, you must have bought your decoder from a trusted source and make sure you test it there before you take it home.
Now if you get home and you are not able to fix it, then read on
Don’t Miss: T-Link 900 HD Decoder Software Download Archive
How to Set-up T.LINK HD Decoder & Activate Either the Gshare/Internet Account or the SDS Account
I will like to start with T.link 600 HD Decoder Now T.link 600 HD decoder is a full HD internet decoder like its successor T.link 900. But the major differences between t.link 900 HD Decoder and T.Link 600 HD decoders are
Differences Between T.Link 600 and 900HD
- To start with, T.link 600 runs on linux operating system while t.link 900 runs on windows operating system (the implication of this is that Linux is a little bit more stable than windows in terms of internet connectivity. However, this difference is negligible.
- Furthermore, T.link 900 comes with double inbuilt accounts valid for one year. In other words, it has an inbuilt dongle(SDS) account and an inbuilt cccam(iks) account both are valid for a year. T.Link 600 on the other hand, has only inbuilt cccam account valid for one year (the implication of this is that while t.link 900 has an option for it to be used without internet connection i.e you can use it as a dongle with two dishes T.link 600 can only be used with the inbuilt internet account)
- To use t.link 900 with the internet cccam account you definitely need a router but with t.link 600 you don’t necessarily need a router as there is an option for you to plug in your internet USB modem at the back of the decoder.
How to Connect T.LINK 600 HD Decoder to Watch Satellite TV
- Basically, it depends on the number of dishes you have but you are to connect the LNB cable of your desired satellite to the LNB input at the back of your decoder and let it be in “Tunner 1”.
- Next, make sure you have scanned the channels. Now, you need to set your dish settings inside the antenna settings of the decoder. To do this navigate to Menu>>Antenna>>tuner A or B then watch the status bar at the bottom of the decoder to see if the signal strength and quality are okay. And if you are combining your dish with the help of a DiSEqC switch, make sure you change it here as well. Lastly, exit and press F1 111 on your remote this will take you to some options make sure you choose the “enable internet” then exit.
- Next, goto MENU>>EXPANSION>>IP SETTINGS>>TEST IP then test your IP and make sure it says ready to be used with the internet then exit.
- Finally, press F1 666 on your remote and this will take you to server settings (by now you must have plugged in your internet modem) then check the numbers of connected servers if in front of connected servers you find zero 0 then wait until it starts reading and I will advise you to wait until it reads to 20+ connected servers before you exit. This is because at 20 or more Connected servers, all your channels will open but anything less, some channels may open and some may not.
HOW TO SETUP T.LINK 900 HD DECODER WITH THE INBUILT INTERNET ACCOUNT:
To use the inbuilt internet account of your t.link 900 decoder, you need a router and you need to first set-up your router on a computer.
For example, i use a tp-link router (but I recommend Vodafone or Huawei router because it can also work with 2g tp-link doesn’t work with edge/2g network).
Now, to setup tp-link you need to first connect the router to your pc via the LAN cable provided with it then type the following ip into your computer web browser http://192.168.1.1 then you will see the settings menu. Just navigate your way to advance>>Network>>3g then set your accesspoint there and make sure you choose 3g only for the network settings. Save and exit now you can connect your usb modem to the router then connect the other end of the lan cable to the lan port of your decoder.

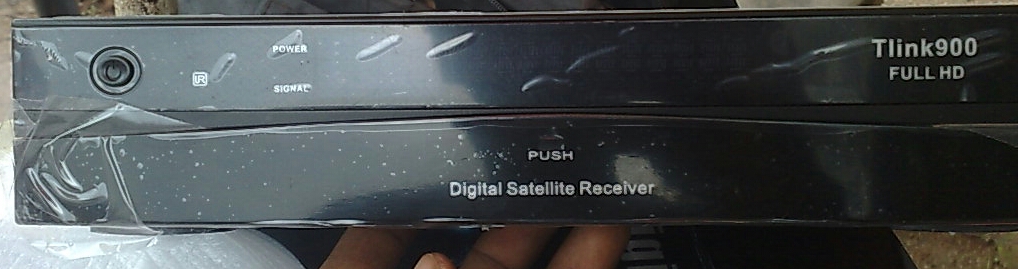

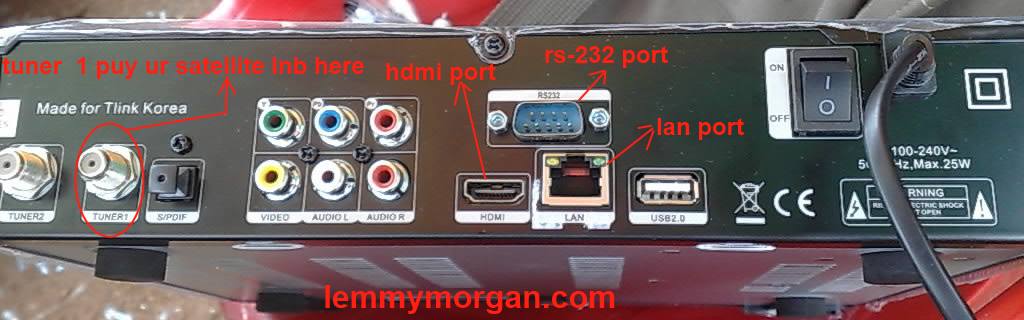

You can see the front and back view of t.link decoder from the picture above. after doing the settings on your router simply follow my instruction on t.link 600 to setup the internet protocol on your t.link 900.
HOW TO ENABLE THE DONGLE/SDS MODE ON T.LINK 900 HD DECODER
Another advantage of t.link 900 HD decoder is that it has an inbuilt dongle account which is also called SDS MODE. SDS mode on t.link 900 HD Decoder is equivalent to dongle accounts so if you have been using one dongle or another like avatar, hawk e.t.c then you won’t have any problem to use this mode.
To activate SDS mode, connect your LNB cable from your server dish e.g, W3A e, 14e, to tuner 2 at the back of your decoder then connect that of the satellite you wish to watch e.g hotbird to use to tuner 1 that is at the back of the decoder and you are done.
What you will do next is to press F1 111 on your remote then from the resulting options select SDS MODE >> Eutelsat w3 africa or equivalent after this exit then goto your channels list and look out for those channels that are highlighted in yellow. Mind you it is only those scramble channels that are highlighted in yellow that will show.
